DW-ENHD16

16-Channel HD and legacy analog to IP signal encoder
Find a Reseller Request a Demo Contact Us FAQs
Features
  • The most cost-effective path to IP
  • Universal HD over Coax® technology with HD-Analog, HD-TV and all legacy analog signal support
  • Connect your analog cameras to DW Spectrum® IPVMS (ONVIF approved CMS integration coming soon)
  • Convert up to 16 analog cameras to 2.1MP/1080p IP video signals at 240fps
  • Real-time 480fps 2.1MP/1080p, 720p and 960H resolution at local monitoring output
  • Simultaneous streaming
  • Record and playback with DW Spectrum® IPVMS. (Requires licenses per channel to record)
  • DW Spectrum® IPVMS licenses*: DW-SPCP16LSC016 (16 channel), DW-SPCPLSC04LSC004 (4 channel). Licenses sold separately
  • Motion detection
  • Support two-way audio (4 input, 1 output)
  • 1x RS-485 Interface for PTZ control
  • Search and playback from DW Spectrum® IPVMS
  • Frame rate and bandwidth control
  • 4 alarm input, 1 alarm output
  • Event notifications via email with image
  • ONVIF conformant, Profile S
  • DW-EN19RE 19" rack mount ears included

Learn about how DW
solutions can work for you

View All Markets

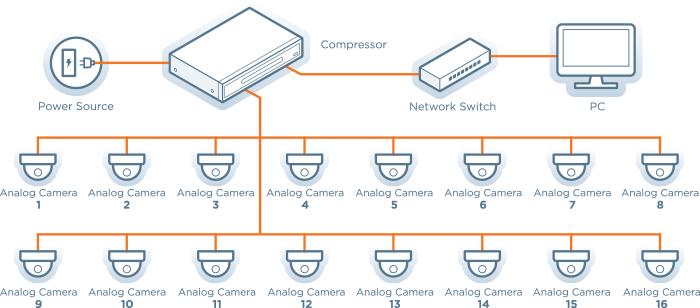

Easiest transition from analog to IP

DW®’s Compressor™ line of encoders is the simplest way to bring existing analog cameras into an upgraded IP installation, utilizing existing cameras to maximize ROI.

Compressor™ HD encoders

DW®’s encoders series supports the transmission of up to 16 HD analog signals into IP signals up to 2.1MP/1080p.

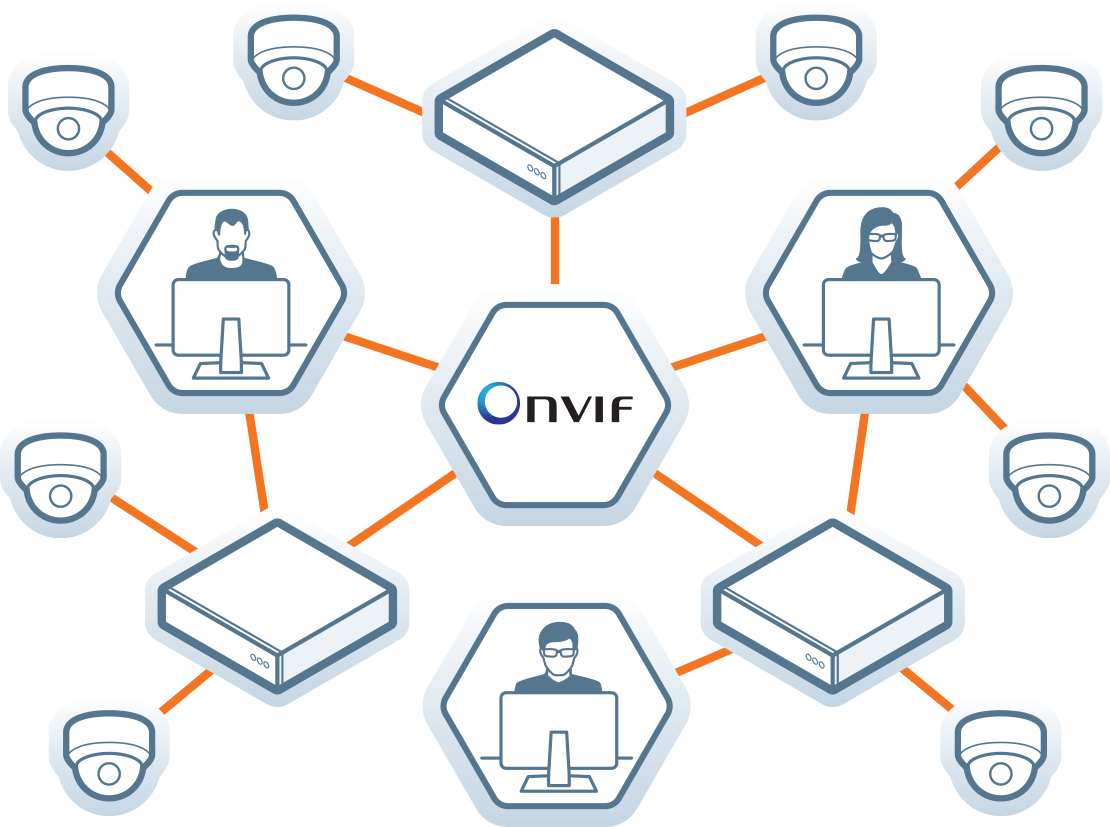

ONVIF® Conformant

DW’s ONVIF conformant IP products allow you to bring our robust solutions to any surveillance system with other ONVIF components, creating a truly unique solution, to match your specific needs.

Specifications

Video
Data rate (Mbps) 288Mbps
Display screen split 1, 16, 4, 9, PIP (picture in picture), Sequence, Split
Display Speed Main stream: 240fps@1080p, Sub Stream: 240fps@VGA
Stream resolution output Spot: 1.0 Vp-p (75 ohm, Composite), True HD: 1920x1080, 1280x720, 1024x768, VGA: 1920x1080, 1280x720, 1024x768
Video input 16CH BNC input, HD over Coax® technology with HD-Analog, HD-TVI and CVBS analog signal up to 4K
Video output ports Spot, True HD, VGA
Performance
Advanced functions Motion detection , Privacy masks
Alarm in/out 1 alarm output, 4 alarm inputs, Terminal block
Alarm management Alarm input, Locally and via DW Spectrum® IPVMS, Motion detection, Sensor activation, System reboot, User login, Video loss
Audio in/out 1 RCA output, 4 RCA intpus
Performance Notifications Notifications via email
Performance Remote software C3 CMS, DW Spectrum® IPVMS
Performance Web viewer Google Chrome® browser, Internet Explorer® browser, Internet Explorer® XP or higher with live view and remote setup, Windows® OS
Serial PTZ control via Coax (UTC)
Network
LAN 10/100/1000 Base-Tx Ethernet (RJ045)
Network Compression H.264
Protocol Bonjour, DDNS, DHCP, ONVIF, Static, TCP/IP, UDP, UPnP, Zeroconf
Security HTTPS, Multi-factor authentication, SSL
Streaming Max. 240fps @ 1080p
Supported protocols ONVIF
Electrical
Power Consumption Max. 14.4W, 1.2A
Power Requirements 12V DC
General
Accessories (Optional) DW-EN19RE (included with DW-ENHD16)
Certification FCC
Licenses (Optional) DW-SPCP04LSC004 - Four (4) DW Spectrum® Analog Encoder IPVMS Licenses, DW-SPCP16LSC016 - Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
Operating humidity 0–90% RH (non–condensing)
Operating temperature 32°F ~ 113°F (0°C ~ 45°C)
Recorder Dimensions (H X W X D) 14.76" x 1.76" x 12.52" (375 x 44.9 x 318.2 mm)
Warranty 2 Year Warranty
Weight 3.96lbs (1.8kg)

Part Numbers

Model Number

Description

DW Spectrum® IPVMS Licenses
DW-SPECTRUMLSC001Single DW Spectrum® IPVMS Recording License
DW-SPECTRUMLSC004Four (4) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC010Ten (10) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC020Twenty (20) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC050Fifty (50) DW Spectrum® IPVMS Recording Licenses
DW-SPECTRUMLSC100One Hundred (100) DW Spectrum® IPVMS Recording Licenses
DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPCP04LSC004 Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPCP16LSC016
 Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
DW Spectrum® I/O Module IPVMS Licenses
DW-SPIOLSC001 Single DW Spectrum® I/O Module IPVMS License
DW Spectrum® Video Wall IPVMS Licenses
DW-SPVWALL1X2 Single DW Spectrum® Video Wall IPVMS License
NOTE: Custom-ordered licenses are available by request.
NOTE: Lifetime upgrades are included with no annual renewal fees.

Purchasing Options

DW Spectrum IPVMS Licensing Options

Model Number

Description

DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPCP04LSC004Four (4) DW Spectrum® Analog Encoder IPVMS Licenses
DW-SPCP16LSC016
Sixteen (16) DW Spectrum® Analog Encoder IPVMS Licenses
NOTE: Custom-ordered licenses are available by request.
NOTE: Lifetime upgrades are included with no annual renewal fees.

Accessories

DW-EN19RE (included with DW-ENHD16)
19in rack mount ears
Learn more
DW-HDBALUN5
HD Video Balun Converter
Learn more
DW-BALUNHD
HD video balun converter
Learn more
